Air Dome - Pneumatic Frame Structure

• Usable Area 100 - 10,000 m²
• Internal Height 7 - 30 m
• Wind Resistance Up to 45 m/s
• Operating Temperature -60°C to +70°C
• Service Life Not less than 15 years

Product Description

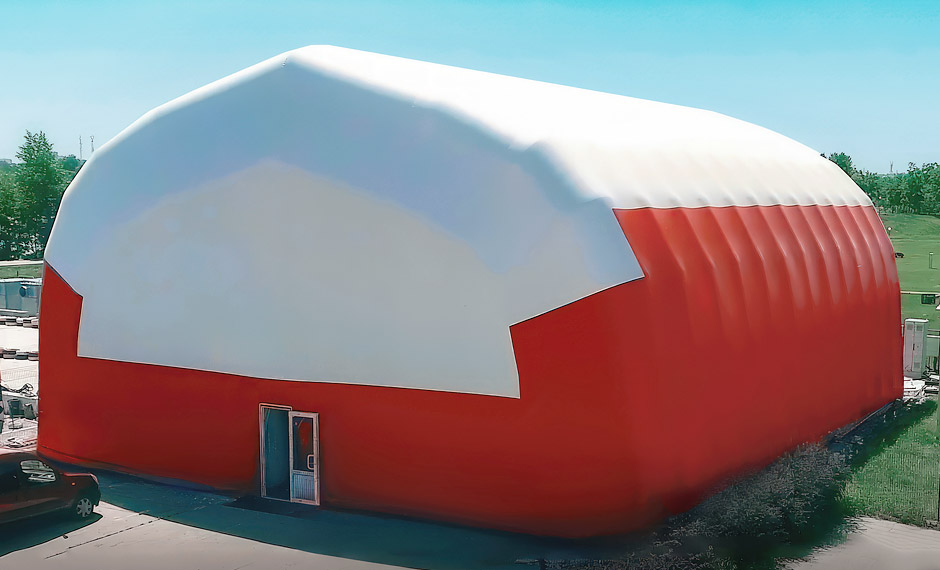

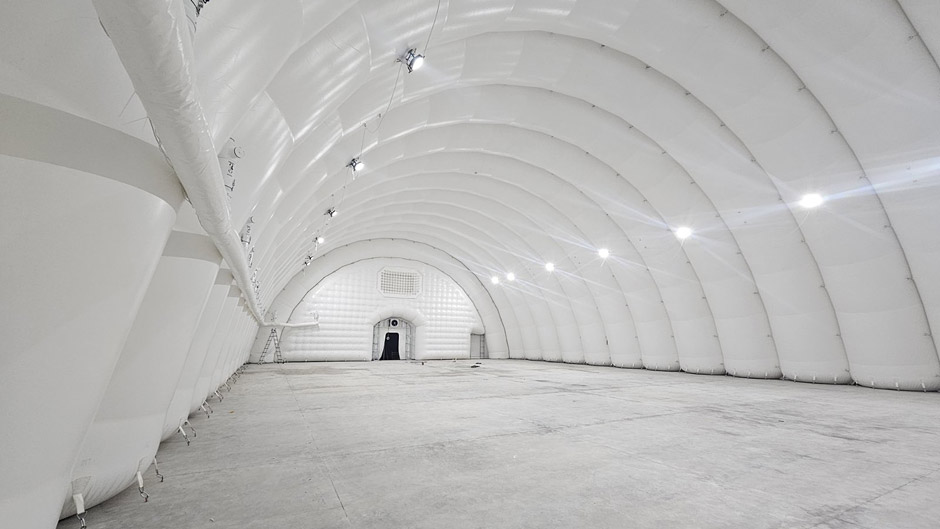

Our company specializes in development and manufacturing of pneumatic frame buildings also called air domes. Pneumatic Frame Structures hold their shape due to pressure in cylinders that perform the function of a supporting frame in arch shape. The arches of the structure are connected to each other by special connectors and covered with a cape. In-house production allows us to proceed with all process cycles, from cutting parts to finish, paint and complete with high-quality fittings.

Based on your needs, structure can be used as offices, warehouses, production facilities, storage repair facilities, sports facilities, mobile military hospitals, aircraft service area, garage, greenhouses, livestock farms and many other infrastructure facilities.

Key Specifications

• Internal Width: 10 - 100 m
• Air Spring Diameter: 1.5 - 4 m²
• Weight of 1 Air Spring: 70 - 1550 kg
• Pumping System Power: 1 - 20 kW
• Total Weight: 1.8 - 100 t
• Installation Time: 1 - 7 days
